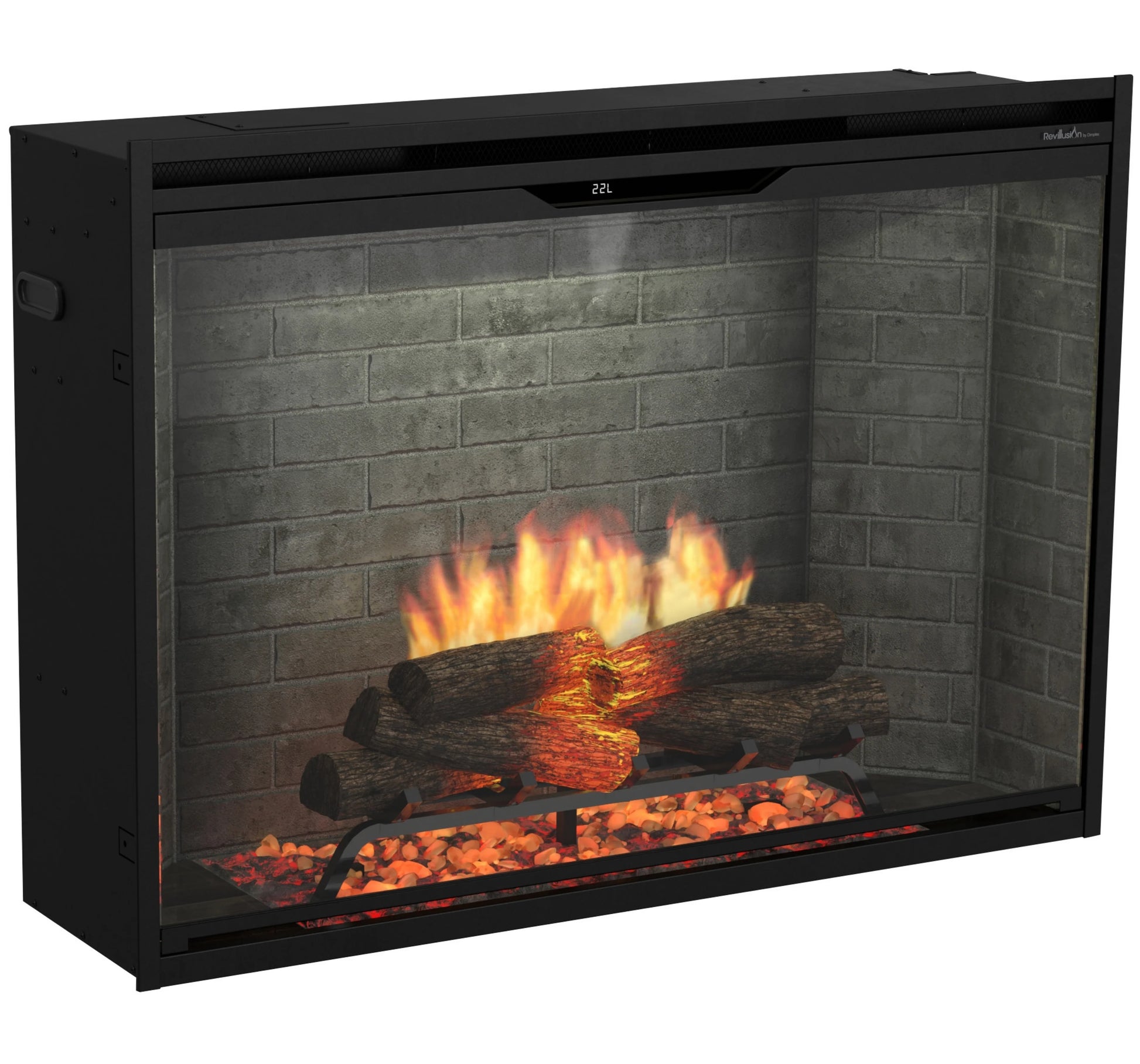

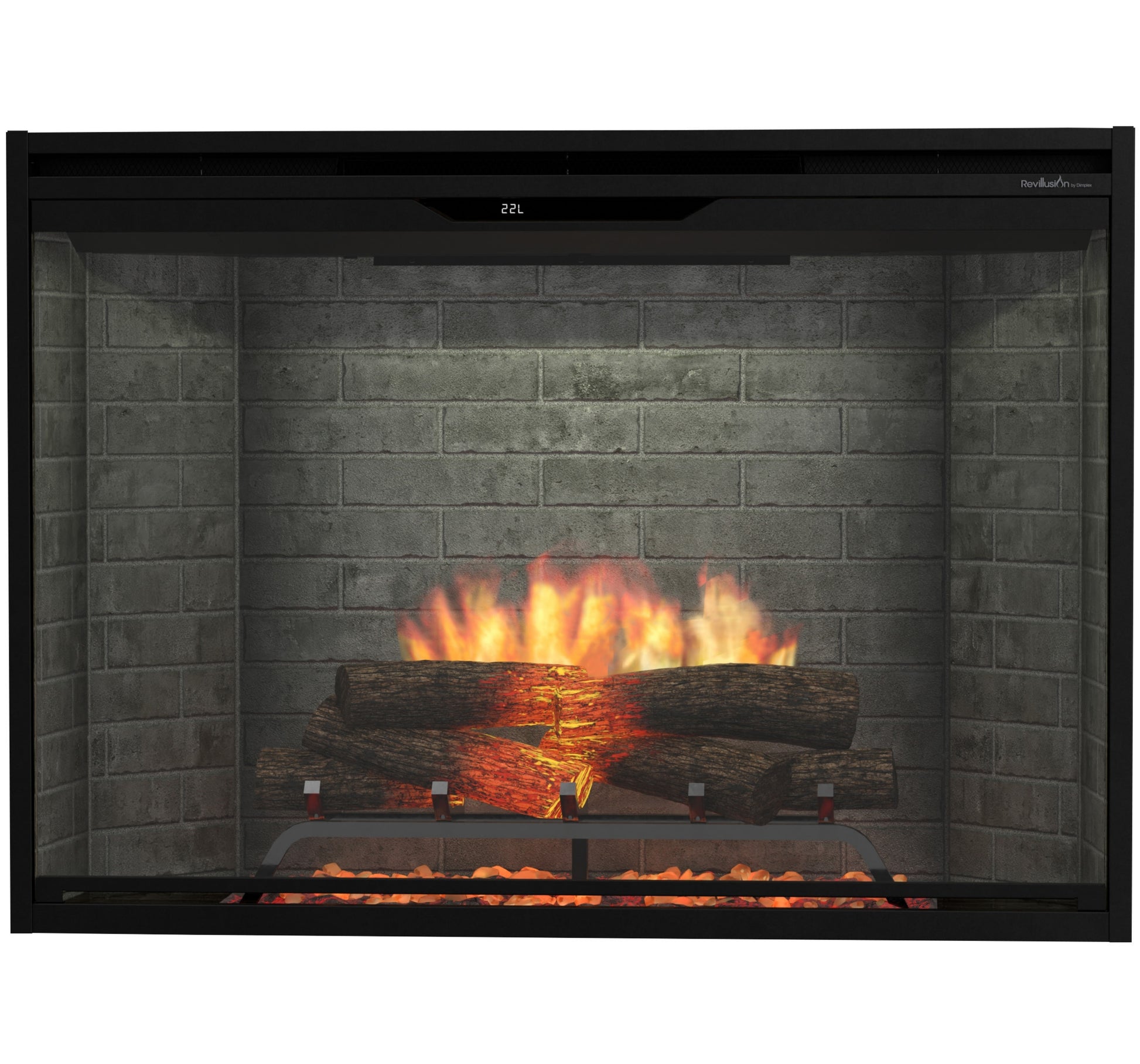

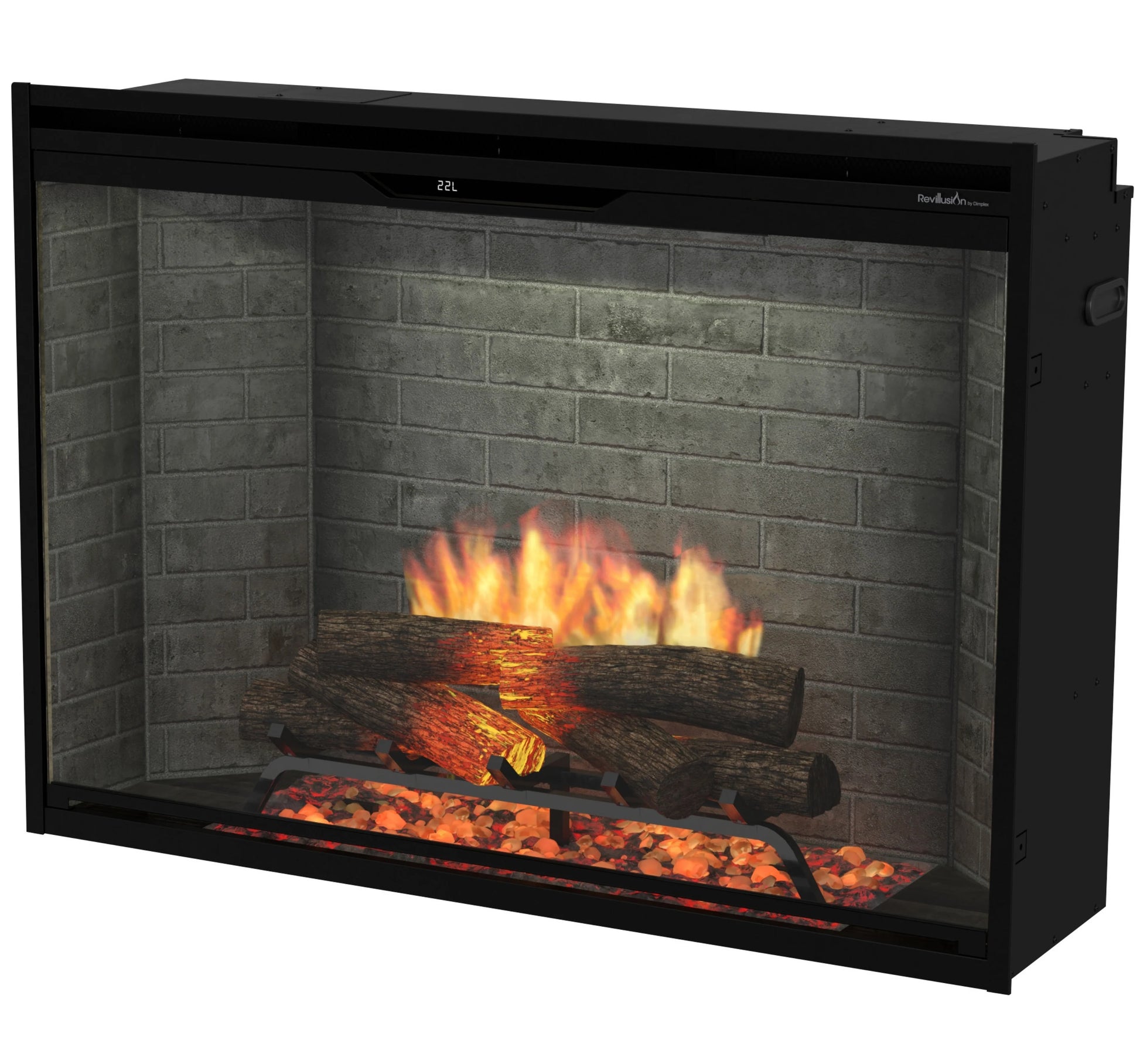

Dimplex Revillusion 42" Built-in Electric Firebox with Neutral Brick

Dimplex Revillusion 42" Built-in Electric Firebox with Neutral Brick

Regular price $3,121.99
Regular price Sale price $3,121.99
Sale Sold out
Shipping calculated at checkout.
Free Shipping & Offers

Free Delivery Order Above $299

Price Match Guarantee

Have Questions? Call (844) 643-8500

Estimated Shipping Widget will be displayed here!

Description

The Dimplex Revillusion® 42" Built-In Electric Firebox reimagines the classic hearth with a full-depth, see-through-the-flames perspective and the patented Revillusion® flame effect. Handcrafted inner-glow logs and a partially frosted acrylic panel make the flames appear to rise from within the logs — reflection-free — against a Neutral Brick interior. A self-trimming flange delivers a clean finished opening, while the 270° surround design and customizable firebox hues let you tailor the look to any space. Powerful Comfort$aver® supplemental heat warms rooms up to 1,000 sq. ft. (up to 9,200 BTU on a 240V supply), and you can run flames year-round with or without heat. Includes front glass and operates by mood-maker remote, hidden touch controls, or the Dimplex Flame Connect™ app.

What's Included

  • Revillusion® Built-In Electric Firebox (Model REV42-NB)
  • Handcrafted Inner-Glow Logs
  • Tempered Front Glass Panel
  • 120V Plug Kit

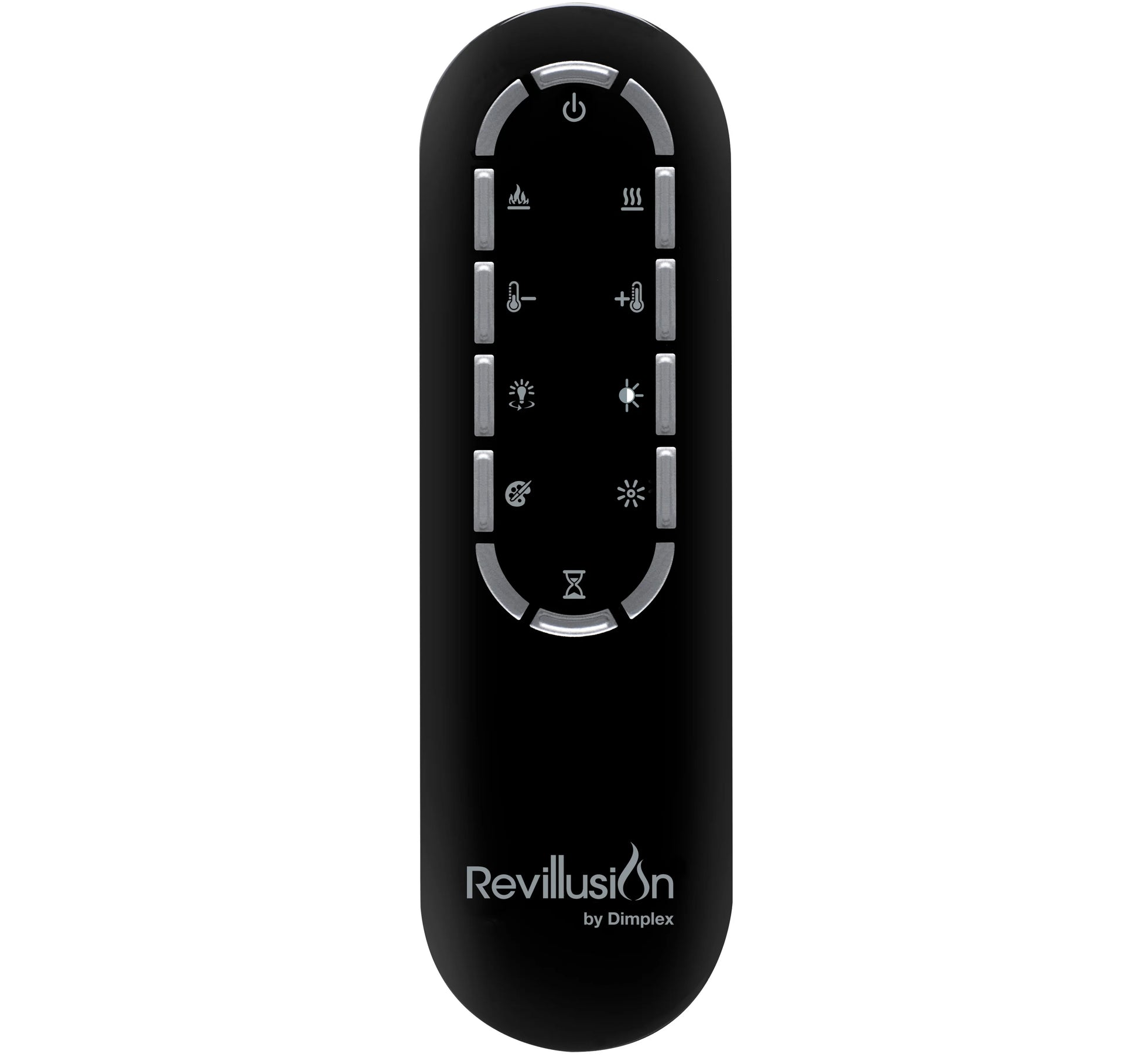

  • Mood-Maker Remote Control
  • Owner's Manual

Key Features

  • Patented Revillusion® Flame Effect with Optiflame® Technology

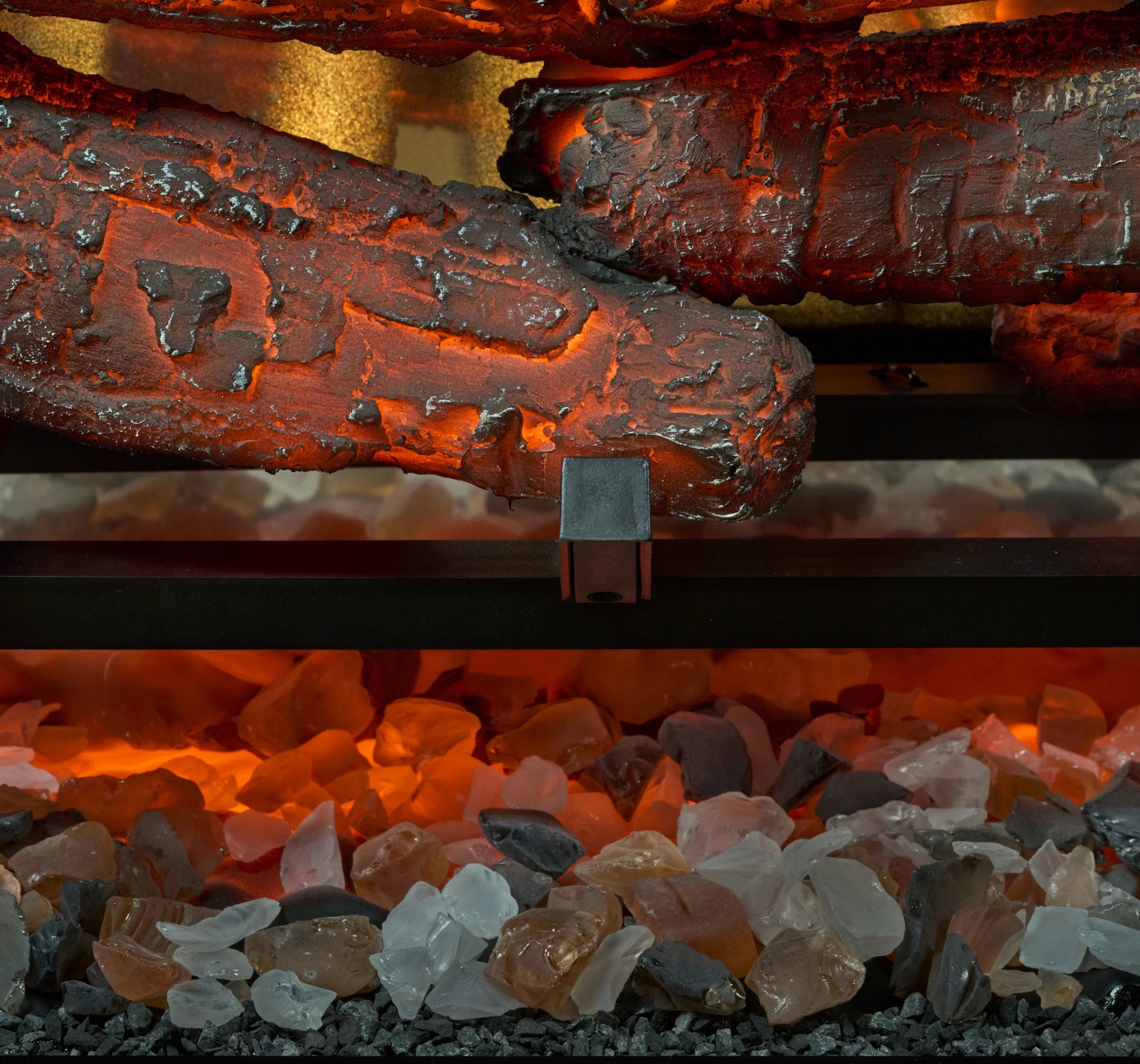

  • Handcrafted Inner-Glow Logs
  • Neutral Brick Interior Backer
  • Partially Frosted Acrylic Panel — reflection-free flame view
  • Self-Trimming Flange Finishes the Rough Opening
  • 270° Firebox Surround Design
  • Customizable Firebox Hues & Mood Lighting
  • Powerful Comfort$aver® Supplemental Heat — up to 1,000 sq. ft.
  • Option to Use 240V Supply for up to 9,200 BTU
  • Eco / Boost Mode & Built-In Thermostat
  • Included Front Glass Panel
  • Dimplex Flame Connect™ App, Mood-Maker Remote & Hidden Touch Controls
  • 120V Hardwire or Plug-In (Optional 120V Plug Kit Included)

Specifications

Brand Dimplex
Series Revillusion
Model Number REV42-NB
Order Number 500005139
Type 42" Built-In Electric Firebox

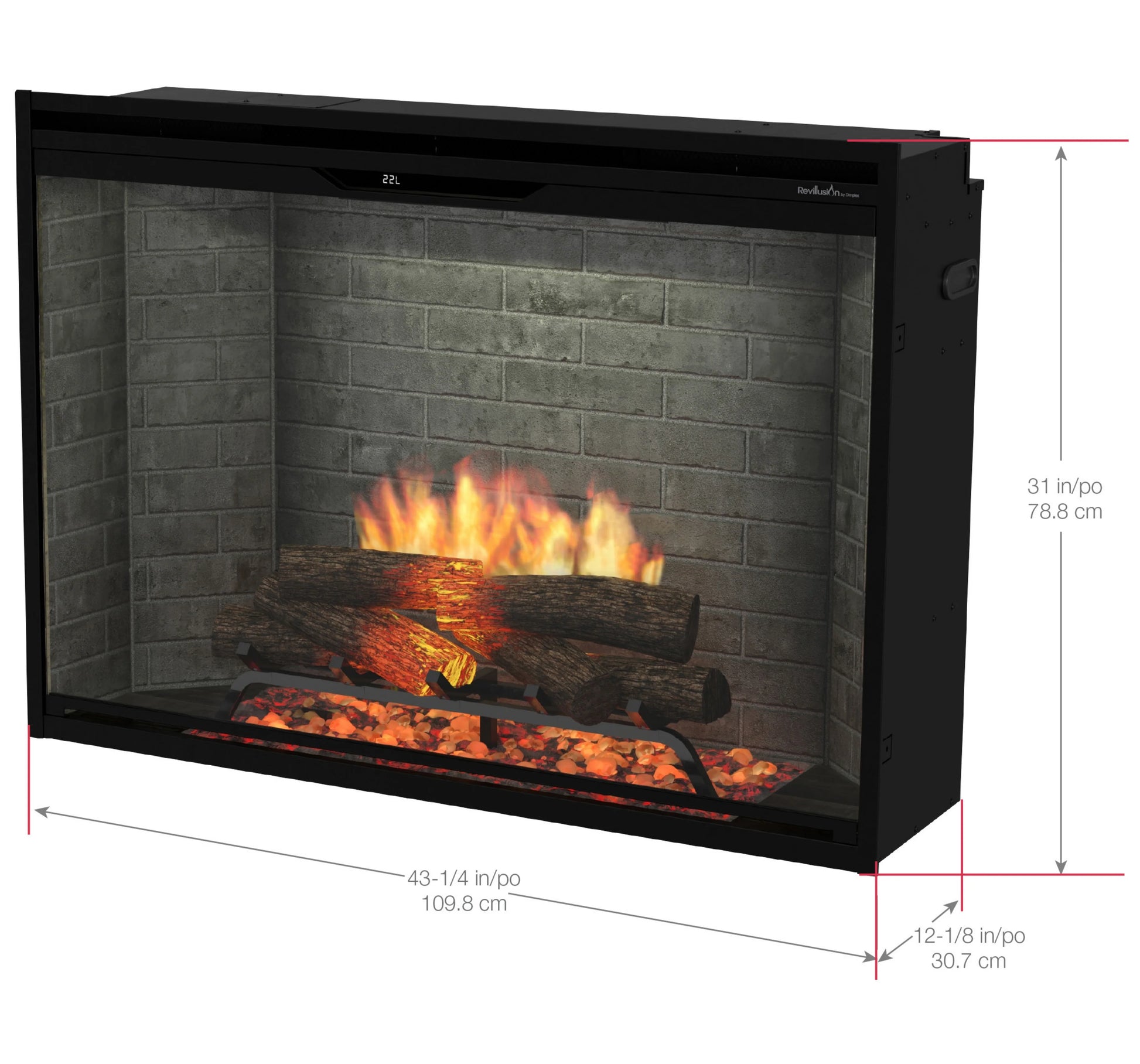

Product Dimensions (W × H × D) 43-1/4" × 31" × 12-1/8"
Packaged Weight 115.1 lbs / 52.3 kg
Voltage 120V / 208V / 240V
Wattage 1375 W / 1975 W / 2575 W
Heat Output (BTU/hr) 4,400 / 6,745 / 8,794
Heating Range Up to 1,000 sq. ft.
Heating Comfort$aver® powerful supplemental (Steel-Sheathed)
Flame Effect Revillusion® with Optiflame®
Ember Bed Inner-Glow Logs / Neutral Brick Backer
Venting Non-Venting
Controls Flame Connect™ App, Mood-Maker Remote, Hidden Touch
Wiring Hardwire or Plug-In (Optional 120V Plug Kit Included)
Installation Options Built-In
Timer Yes
Warranty 2-Year Limited
